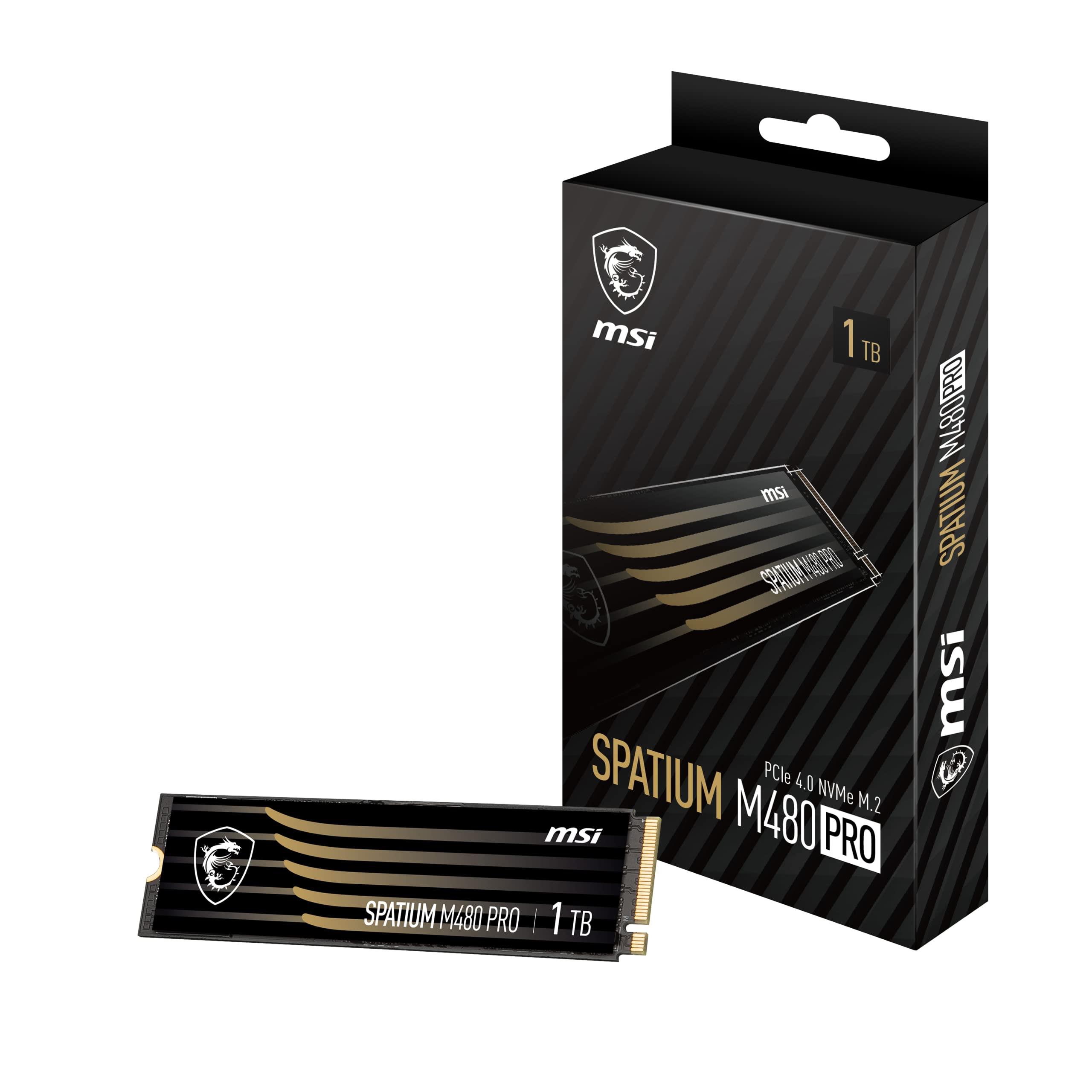

MSI SPATIUM M480 PRO PCIE 4.0 NVME M.2 7400/6000

Model Name SPATIUM M480 PRO PCIe 4.0 NVMe M.2

Capacity 1TB 2TB 4TB

Controller PHISON E18

Flash Memory 3D NAND

DRAM Cache 1GB DDR4 2GB DDR4 2GB DDR4

Form Factor M.2 2280

Interface PCIe Gen4 x4, NVMe 1.4

Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1

Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB/s) 7400 Sequential

Write up to (MB/s) 6000 7000 7000

Random Read 4KB up to (IOPS) 750,000 1,000,000 1,000,000

 Random Write 4KB up to (IOPS) 1,000,000

Maximum Operating Power (W) 9.5 10.5 11.3 Idle

Power PS3 (mW) 40 45 50

Low Power L1.2 (mW) 3

Operating Temperatures 0°C – 70°C

 Storage Temperatures -40°C – 85°C

Terabytes Written (TBW) 700 1400 3000

Mean Time Between Failure (MTBF) Up to 1,600,000
